Product Overview

The HMPCM302 pressure transmitter uses a diffused silicon pressure sensor core as its sensitive element. The built-in processing circuit converts the sensor’s millivolt signal into standard voltage, current, or frequency output signals, allowing direct connection to computers, control instruments, display meters, and other devices, enabling long-distance signal transmission.  It features an integrated all-stainless steel construction, with multiple stainless steel welding processes to meet explosion-proof design requirements, ensuring long-term reliability in harsh environments. It is widely used in flammable and explosive applications across industries such as petroleum, chemical, power, hydrology, geology, and marine engineering.

Features

• All stainless steel, fully welded construction

• High strength, vibration resistant

• solation explosion-proof certification from the National Quality Supervision and Inspection Center for Explosion-Protected Electrical Products

• Wide measuring range, capable of measuring absolute pressure, gauge pressure, and sealed reference pressure

• Excellent sealing, ensuring long-term stable operation

• Advanced structure ensures product reliability

• Widely used in flammable and explosive environments

Applications & Industries

• Equipment integration

• Hydraulic and pneumatic equipment

• CNG transmission pipeline networks

• Compressors

• Natural gas filling station equipment

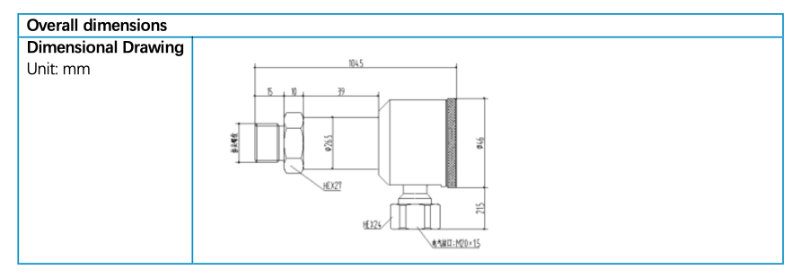

Important Notes:

1. Never touch the diaphragm with hard objects, as this may cause damage to the isolation diaphragm.

2. Before installation, please carefully read the product user manual and verify all relevant product information.

3. Strictly follow the specified wiring method; otherwise, it may cause product damage and other potential failures.

4. Incorrect use may result in hazards and personal injury.

Important Notes:

1. Do not misuse this document.

2. The information in this selection guide is for reference only. This document should not be used as a product installation guide.

3. Complete installation, operation, and maintenance information is provided in the product manual.

4. Incorrect use may result in hazards and personal injury.

Selection of Damping Device

Applications:

Cavitation, water hammer, and pressure spikes may occur in air or liquid systems where flow velocity changes. Examples include rapid valve closure or pump start/stop. These issues can arise at both the inlet and outlet, even at relatively low operating pressures.

Medium Conditions:

In liquids containing particles, nozzle clogging may occur. Vertically installing the transmitter can minimize the risk of clogging.

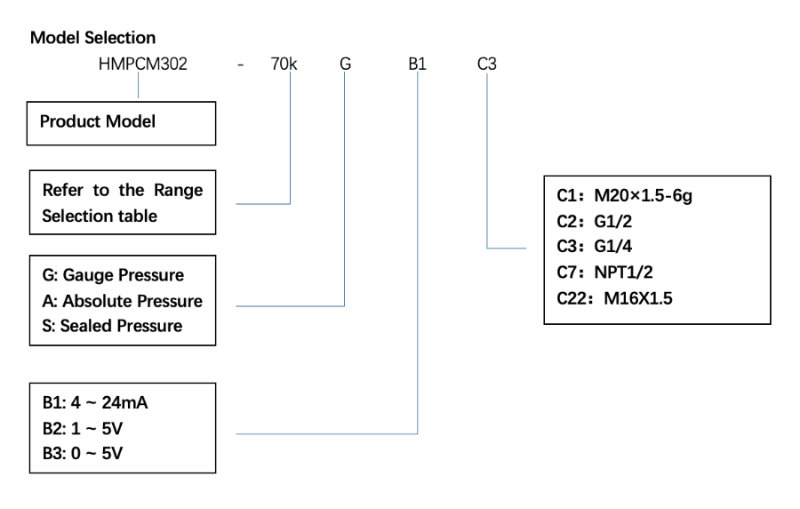

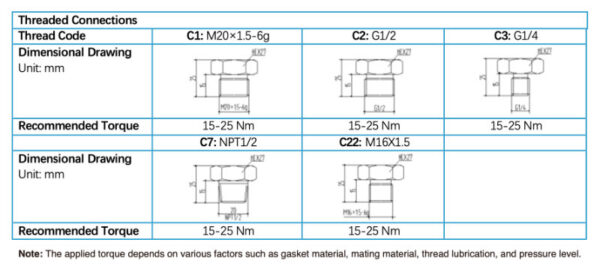

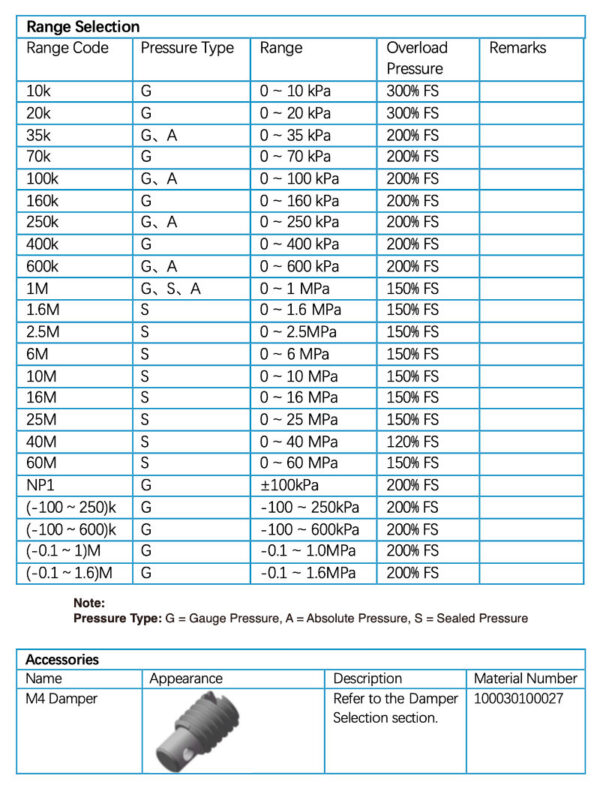

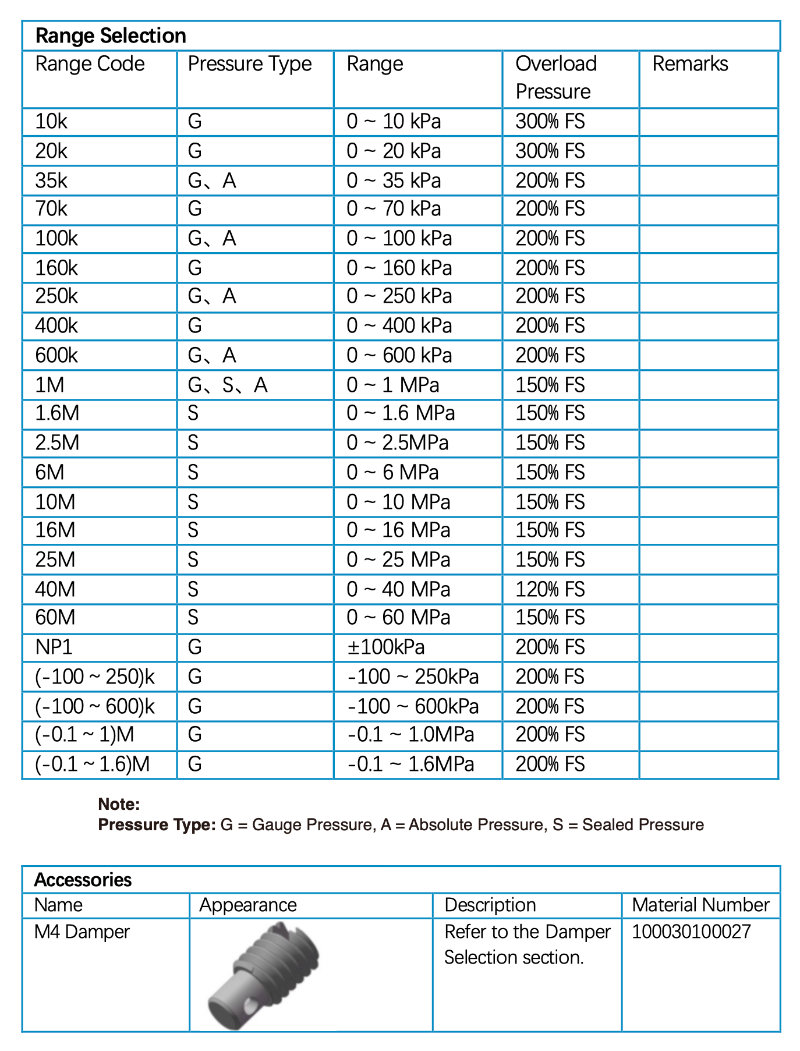

Example: HMPCM301-70kGB1C3I6

This indicates the model is HMPCM302, with a measuring range of 0-70kPa, pressure type gauge pressure, power supply 12-36V, output signal 4-20mA, and threaded connection G1/4.

Ordering Tips

1. When selecting the model, please ensure compatibility between the measured medium and the wetted parts of the product.

2. If you have special requirements regarding product appearance or performance parameters, our company can provide customization.
