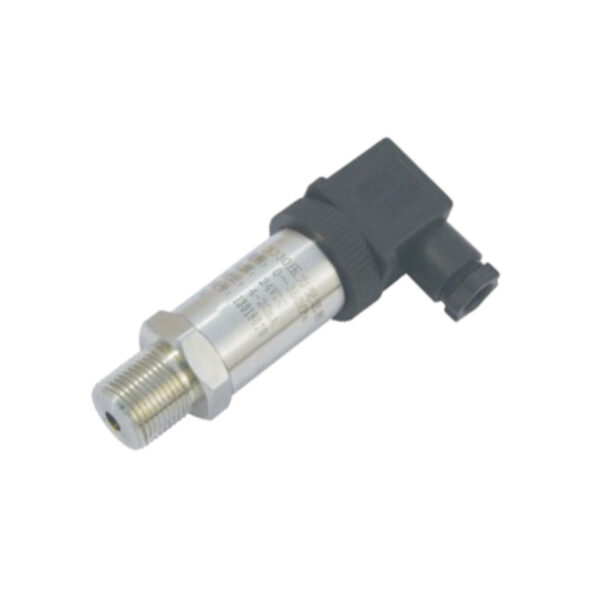

The HMPCM330 pressure transmitter utilizes a high-precision foil strain gauge as its sensing element, featuring a unique integrated elastic structure that provides excellent stability and reliability. The signal processing circuit is housed within a stainless steel enclosure and undergoes stringent process aging treatment. It also incorporates advanced compensation functions. This product is primarily designed for applications involving high pressure, high differential pressure, and significant pressure surges.

Features

• Integral structure combining measuring diaphragm and pressure port

• Threaded interface with 7-degree cone sealing surface

• Resistant to vibration and instantaneous pressure shocks

• Capable of measuring pressures up to 600 MPa

Applications & Industries

• Heavy equipment integration

• High-pressure applications

• High-load conditions

• High-impact environments

• Areas with frequent overloads

Important Notes:

1. Do not misuse this document.

2. Before installation, please read the product user manual carefully and verify all relevant product information.

3. Strictly adhere to the specified wiring methods. Incorrect wiring may lead to product damage and other potential malfunctions.

4. The information in this selection guide is for reference only and should not be used as a product installation guide.

5. Complete installation, operation, and maintenance information is provided in the product manual.

6. Improper use may result in hazards and personal injury.

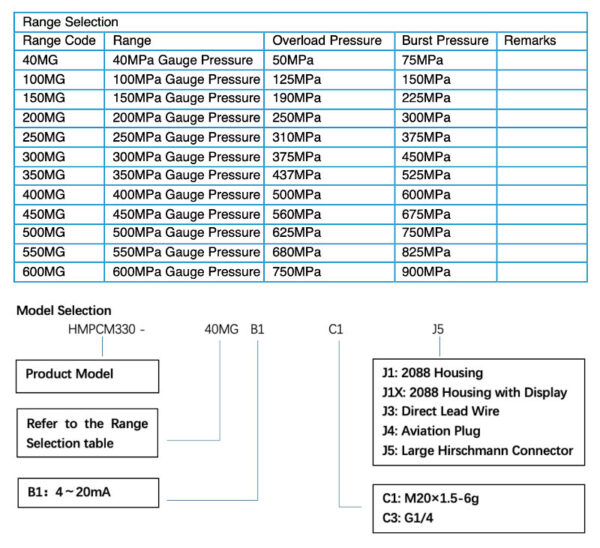

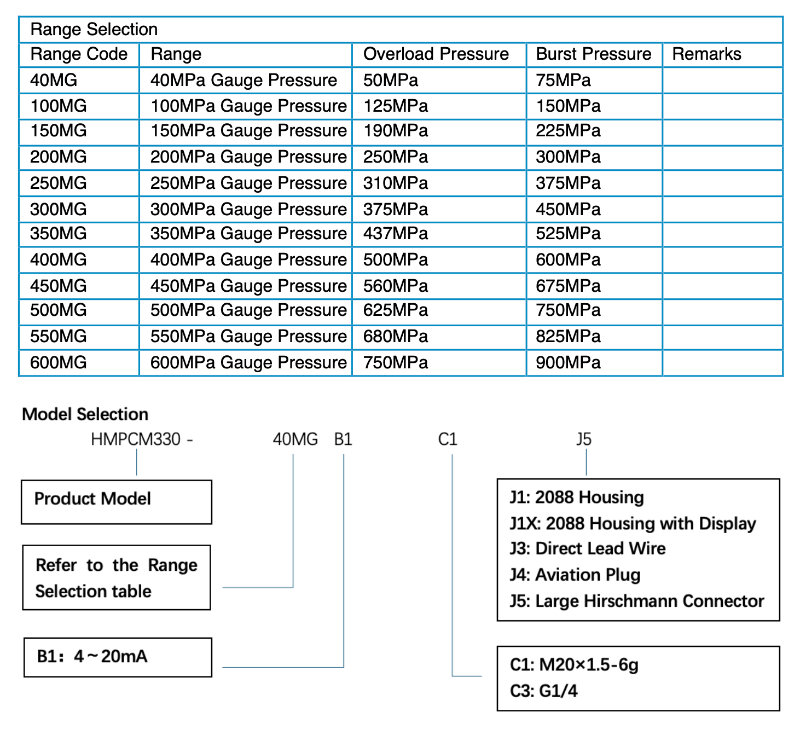

Example: HMPCM330-40MGB1C1J5

This indicates the model is HMPCM330, with a measuring range of 0~40MPa, a power supply of 9~30V, an output signal of 4~20mA, a threaded connection of M20×1.5-6g, and a Large Hirschmann connector.

Ordering Tips:

(1) When selecting the model, please pay attention to the compatibility between the measured medium and the wetted parts of the product.
(2) If you have special requirements regarding the product’s form factor or performance parameters, our company can provide customization.
