The HMPCT200 swivel joint temperature transmitter is specifically designed for convenient installation. It utilizes a high-performance, high-reliability imported platinum resistance sensor. After precise temperature and non-linear compensation, and employing advanced modular signal processing technology, it accurately measures and calibrates the temperature of the medium, outputting a standard industrial control signal.

The product features a fully integrated stainless steel housing, offering advantages such as compact size and fast thermal response. It uses specialized shielded cables with a wide operating temperature range. This product is easy to install and exhibits excellent vibration and shock resistance.

Features

• Easy installation

• High strength and pressure resistance

• Integrated structure

• Long-term stable operation

• Fast response time

• Durable construction

Applications & Industries

• Equipment integration

• Automation temperature measurement and control systems for pumps, compressors, natural gas pipeline networks, etc.

• Temperature measurement of water or oil in fields such as petroleum, chemical, power generation, textile, and environmental protection.

Important Notes:

1. During temperature measurement, ensure the temperature-sensing element reaches thermal equilibrium with the object being measured.

2. The insertion depth must be accurate.

3. Please read the product user manual carefully before installation and verify all relevant product information.

4. Strictly adhere to the specified wiring methods. Incorrect wiring may lead to product damage and other potential malfunctions.

5. Improper use may result in hazards and personal injury.

6. Do not misuse this document.

7. The information in this selection guide is for reference only and should not be used as a product installation guide.

8. Complete installation, operation, and maintenance information is provided in the product manual.

9. Incorrect use may lead to hazards and personal injury.

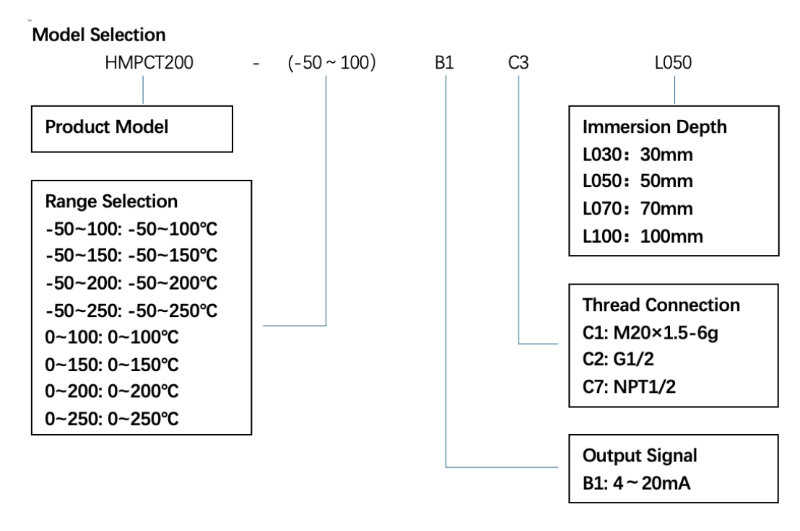

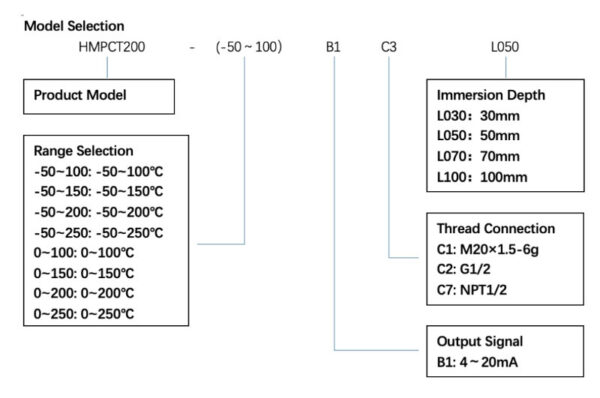

Example: HMPCT200(-50°C~150°C)B1C1L050

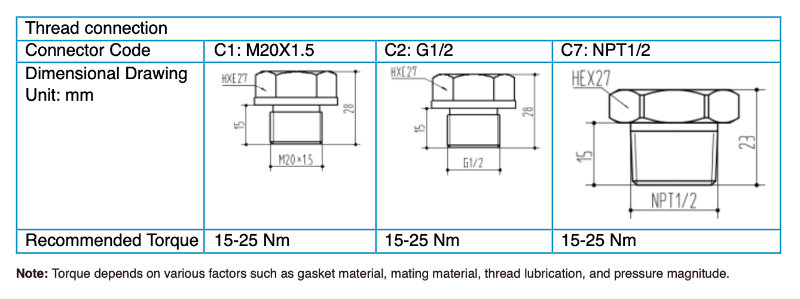

This indicates the model is HMPCT200, with a range of -50°C to 150°C, a power supply of 16-36VDC, an output signal of 4-20mA, a threaded connection of M20×1.5, and an insertion depth of 50mm.



Ordering Tips:

(1) Please ensure the compatibility between the measured medium and the wetted parts of the product during model selection.
(2) If you have special requirements regarding the product’s form factor or performance parameters, our company can provide customization.
